Product Overview

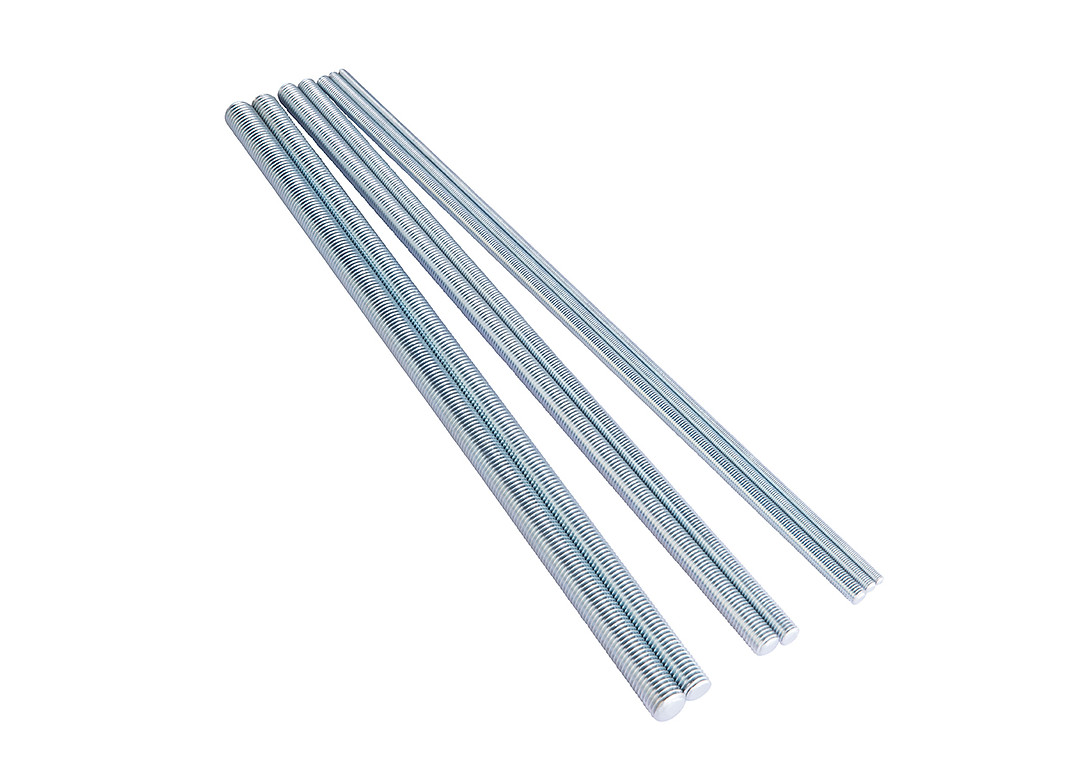

Our Threaded Rods (also known as All Thread, Stud Bolts, or Threaded Bars) are long metal rods that are threaded along their entire length. They are the backbone of the construction and HVAC industries, used for fastening items together in situations where a standard bolt is too short. We manufacture strict Threaded Rod standards to ensure tensile strength and thread accuracy.
Russian Name: Шпилька резьбовая (DIN 975 / DIN 976)
Standards: DIN 975 (1m/2m/3m length), DIN 976 (Custom lengths), ASTM A307
Key Features
-
Massive Production: As a Handan-based factory, we roll tons of threaded rods daily, offering the most competitive “weight-based” pricing in the market.
-
Flexible Lengths: Standard 1000mm, 2000mm, 3000mm lengths, or cut-to-size studs (e.g., 100mm, 250mm).
-
Grade Options: From Low Carbon Steel (Grade 4.8) for general use to Quenched & Tempered (Grade 8.8, 10.9) for structural applications.
-
Surface Treatment: Bright Zinc Plated (Blue/White) is our best-seller, providing excellent rust resistance and a shiny appearance.
Technical Specifications
| Property | Specification |
| Product Name | Threaded Rod, All Thread Rod, Stud Bolt |
| Russian Name | Шпилька резьбовая оцинкованная |
| Material | Carbon Steel (Q195, Q235, 45#), Stainless Steel (SS304/316) |
| Diameter | M6, M8, M10, M12, M14, M16, M20, M24 … up to M64 |
| Length | 1000mm, 2000mm, 3000mm, 6 Feet, 10 Feet, 12 Feet |
| Grade | Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9, Grade A |
| Finish | Plain, Black, Zinc Plated (ZP), Yellow Zinc, HDG |
| Standard | DIN 975, DIN 976, ASTM A193 B7, ASTM A307 |
| Packing | Woven Bags (Gunny Bags), Wooden Pallet, or Plastic Tube |
Applications
-
HVAC Suspension: Suspending air ducts and ventilation channels from ceilings (often used with Beam Clamps).
-
Construction: Anchoring wooden or steel structures to concrete.
-
Plumbing: Securing pipe flanges and water lines.
-
Chemical Industry: High-strength B7 studs for pipeline valves.
Get a Quote
We export 20-30 containers of threaded rods every month.
To get our latest price list per ton or per piece, please Contact Us directly.
