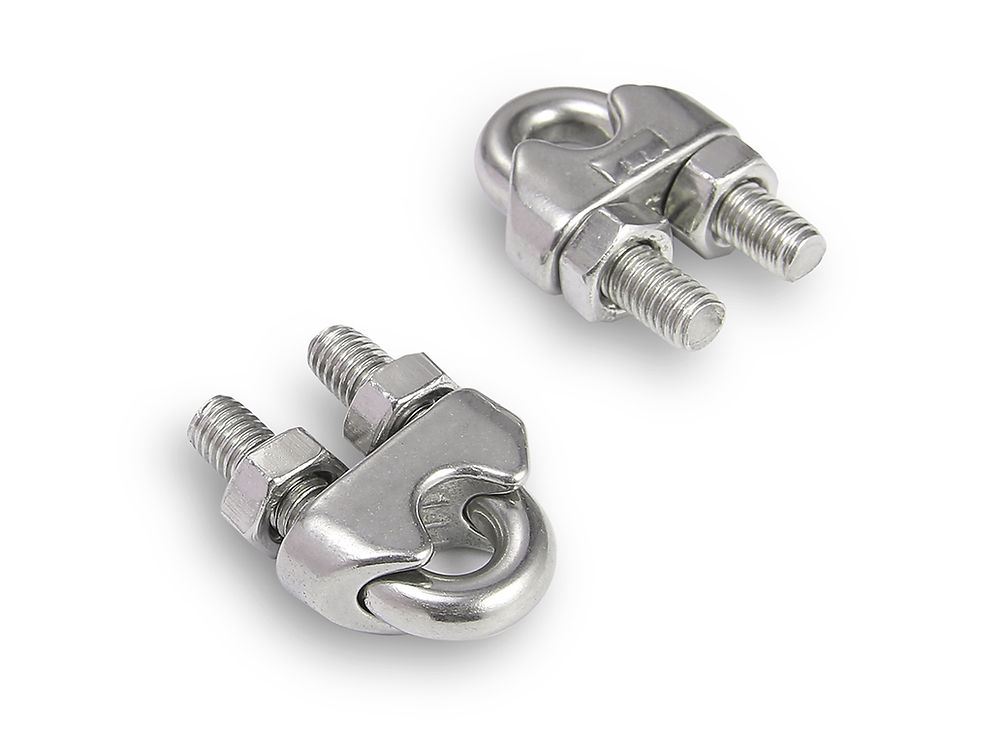

The Stainless Steel Wire Rope Clip (manufactured to DIN 741 standards) is the most reliable hardware for creating load-bearing eyes in steel cables. Widely known as a “Bulldog Grip,” “Wire Rope Clamp,” or “U-Bolt Clip,” the Stainless Steel Wire Rope Clip consists of a U-shaped bolt, a forged or cast saddle, and two hex nuts. It is designed to clamp the loose end of a wire rope back to itself, creating a secure loop for turnbuckles, thimbles, or hooks.
Product Overview: Our clips are precision-cast from marine-grade Stainless Steel A4 (316) or standard A2 (304). Unlike galvanized iron clips that rust and seize up, our stainless steel series ensures that the threads remain workable even after years of exposure to rain, snow, or saltwater, making them the standard choice for architectural rigging and yacht guardrails.
Stainless Steel Wire Rope Clip Specifications
| Product Name | Wire Rope Clip / Cable Clamp / Bulldog Grip |
| Standard | DIN 741 (Commercial) |
| Material Grade | Stainless Steel A2 (304) / A4 (316) |
| Surface Treatment | Polished (Mirror Finish) |
| Available Sizes | 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, up to 26mm |
Engineering Insight: “Never Saddle a Dead Horse”
Correct installation of a Stainless Steel Wire Rope Clip is critical for safety. The golden rule in the rigging industry is: “Never Saddle a Dead Horse.”
- The “Live” End (Horse): This is the long part of the rope that carries the load. The Saddle (the flat base) must always sit on the Live End to protect it from being crushed.
- The “Dead” End: This is the short, cut end of the rope. The U-Bolt must sit on this dead end. If you reverse this, the U-bolt will crush the load-bearing strands, reducing the rope’s breaking strength by up to 50%.
DIN 741 vs. DIN 1142
It is important to choose the right standard:
- DIN 741 (This Product): Designed for static loads, handrails, and suspension cables. NOT recommended for overhead lifting.
- DIN 1142: Heavy-duty forged clips designed for critical lifting applications (cranes).
For more details on cable termination methods, please refer to the Wire rope termination entry on Wikipedia.
Frequently Asked Questions (FAQ)
Q: How many clips should I use per loop?
A: As a general rule: For ropes up to 8mm, use 3 clips. For larger ropes, use 4 or more. Spacing between clips should be 6 times the rope diameter.
Q: Do I need to retighten them?
A: Yes. Wire rope stretches and shrinks under load. You must check and retighten the nuts after the first load is applied (Cycling).
Need Rigging Hardware?
Handan Bolt is a premier supplier of rigging hardware. We stock Stainless Steel Wire Rope Clips, Turnbuckles, and Thimbles in matching sizes.
