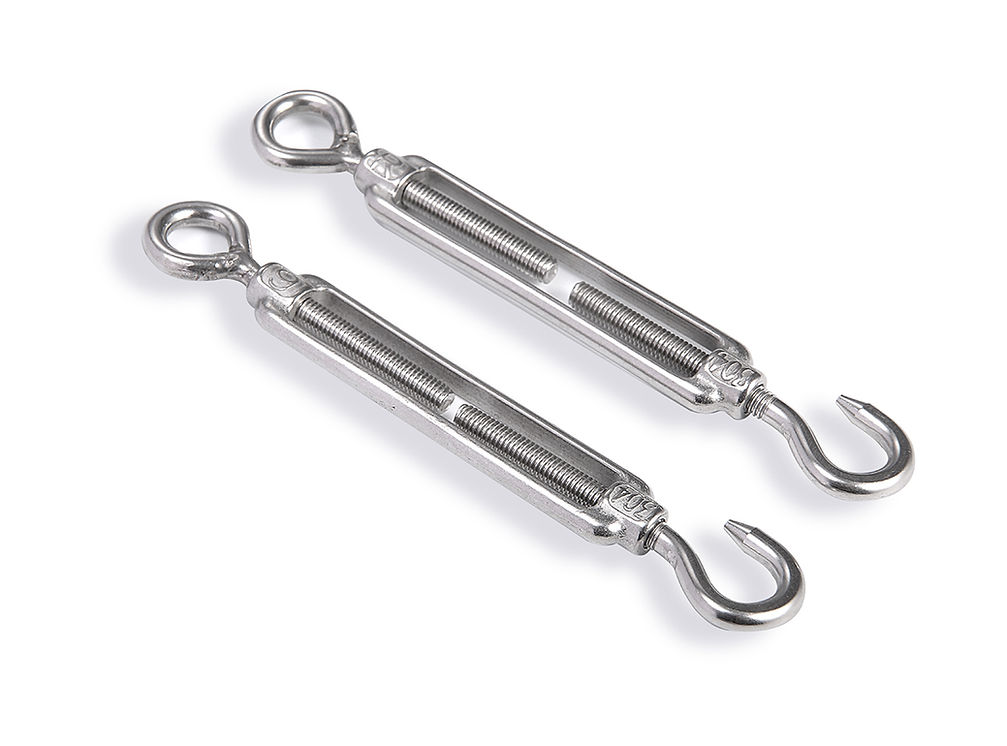

The Stainless Steel Turnbuckle (specifically the Hook & Eye configuration) is the quintessential rigging device for adjusting the tension or length of ropes, cables, tie rods, and other tensioning systems. Compliant with DIN 1480 standards, our Stainless Steel Turnbuckle features an open-body design that allows for easy inspection of thread engagement, ensuring safety and reliability in critical marine and architectural applications.
Product Overview: Forged from premium Stainless Steel A4 (316) or A2 (304), this tensioner offers superior rust resistance compared to galvanized iron turnbuckles. The unique Hook and Eye design provides the best of both worlds: the “Eye” end provides a secure, permanent attachment point for wire rope thimbles, while the “Hook” end allows for quick detachment from wall plates or pad eyes.
Stainless Steel Turnbuckle Specifications
| Product Name | Turnbuckle / Rigging Screw / Bottle Screw |
| Configuration | Hook & Eye (Also available in Eye/Eye, Hook/Hook) |
| Standard | DIN 1480 (Open Body) / JIS Frame Type |
| Material | Stainless Steel A4 (316) / A2 (304) |
| Size Range | M5, M6, M8, M10, M12, M16, M20 |
Engineering Insight: How It Works
The magic of a Stainless Steel Turnbuckle lies in its threading. The central body features Left-Hand Threads on one end and Right-Hand Threads on the other.
When you rotate the body frame:
- Tightening: Rotating in one direction pulls both threaded rods inward simultaneously, shortening the assembly and increasing tension.
- Loosening: Rotating the opposite way pushes both rods out, releasing tension without twisting the attached cables.
Configuration Guide: Why Hook & Eye?
Choosing the right end fittings is crucial:
- Hook & Eye (This Product): The most versatile. Use the Eye side for the permanent wire cable connection (it won’t slip off). Use the Hook side to attach to a wall anchor or post, allowing you to easily unhook it if you need to take the shade sail/cable down for winter.
- Eye & Eye: For permanent installation where disassembly is rarely needed. Safest against accidental detachment.
- Hook & Hook: For temporary setups where both ends need to be detached quickly.
For more details on tensioning mechanics, please refer to the Turnbuckle entry on Wikipedia.
Critical Maintenance: Preventing Galling
Stainless steel threads can suffer from “Galling” (cold welding) under high tension. To prevent your Stainless Steel Turnbuckle from seizing up permanently:
- Lubricate: Always apply a nickel-based anti-seize lubricant or marine grease to the threads before tensioning.
- Slow Down: Do not use high-speed impact drivers to tighten turnbuckles. The friction heat will cause the threads to lock. Hand tightening with a wrench is recommended.
Frequently Asked Questions (FAQ)
Q: Can I use this for lifting?
A: DIN 1480 turnbuckles are generally intended for static tensioning (guy wires, fencing, shade sails). For overhead lifting, you should use rated turnbuckles with a stamped WLL (Working Load Limit) and safety cotter pins.
Q: How much adjustment do I get?
A: Generally, the “Take-Up” (adjustment length) is about equal to the thread diameter multiplied by 10-15. For example, an M10 turnbuckle typically offers about 80mm-100mm of adjustment travel.
Need Shade Sail Hardware?
Handan Bolt is a leading manufacturer of the Stainless Steel Turnbuckle. We supply complete kits including Pad Eyes, Snap Hooks, and Wire Rope.
