Size from 2mm-10mm
Product Overview: Aesthetic & Lightweight Cable Grips

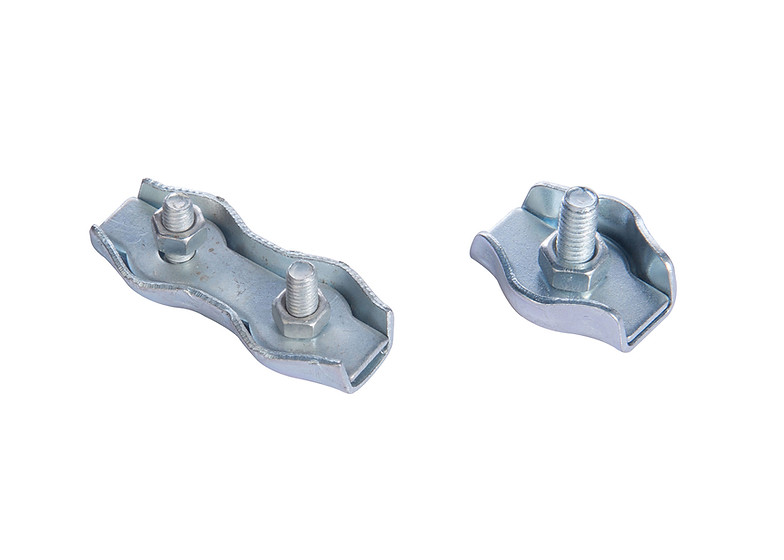

The Simplex and Duplex Wire Rope Clips are the preferred choice for applications where aesthetics and space-saving are as important as holding power. Unlike bulky cast iron clips, these are manufactured from Stamped Carbon Steel plate, offering a sleek, flat profile.
They are available in two “GEO-Configurations”:
- Simplex Clip: Features a single bolt and locking plate. Ideal for forming simple loops in small diameter cables.
- Duplex Clip: Features two bolts and a longer locking plate. This “double-grip” geometry provides significantly higher holding strength and stability than the Simplex version.
GEO-Technical Specifications
Manufactured in Handan, these clips are zinc plated for a bright, shiny finish that blends well with stainless steel or galvanized wire ropes.
| Technical Parameter | Specification Data |
|---|---|
| Product Type | Simplex (1-Post) / Duplex (2-Post) Clip |
| Manufacturing Process | Precision Metal Stamping (Steel Plate) |
| Material | Carbon Steel Q235 / Stainless Steel 304 |
| Surface Finish | Blue/White Zinc Plated (High Gloss) |
| Size Range | 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm |
Engineering Application Guide
Best Uses: Due to their flat design and shiny finish, they are perfect for:
- Shop fitting and signage suspension.
- Architectural lighting installation.
- Clotheslines and garden trellises.
- Lightweight catenary wires.
Safety Note: These clips are NOT designed for overhead lifting or heavy-duty traction. For load-bearing rigging, please use our DIN 1142 or DIN 741 clips.
Origin Advantage & Packaging
Handan Factory Direct: We produce millions of stamped clips monthly using automated progressive dies. This ensures low unit costs and consistent quality for hardware wholesalers.
Bulk or Retail Packs?
We supply in bulk cartons or blister cards (sets of 2 or 4) ready for supermarket shelves.
